NP 300 6C 01

light source

olightsource: LEDModule

olight source color:RGBACL

olamp colortemperature:2000K~10000Kavailabletone

oColor Refers:highestupRa97

olight sourcelife: 20,000hours

optical system

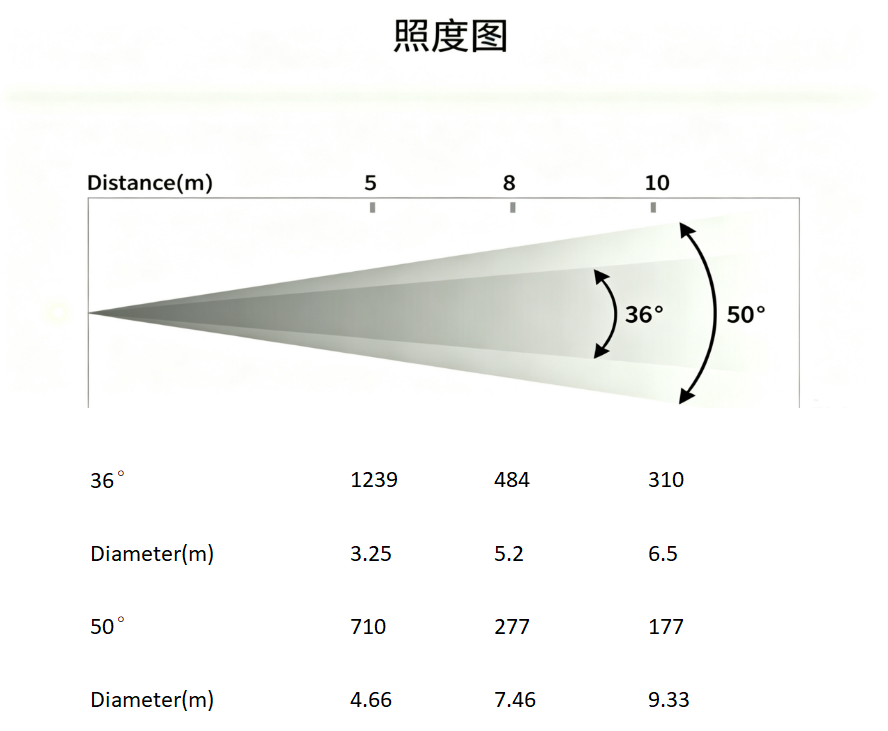

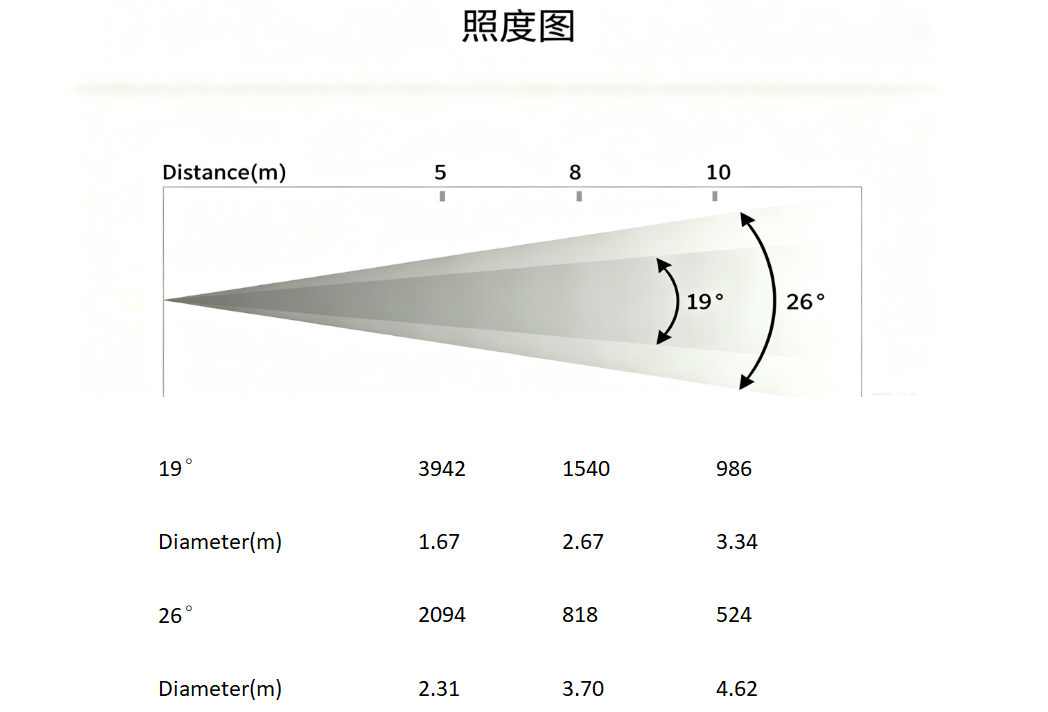

obeam angle: 19°/26°/36°/15°-30°/25°-50°

oglass lens combination,HSICcolor mixing system

Control and Procedure

o4touch keys

ocontrol surfaceplate:OLEDDisplay

ooperating die: DMXdie,Manual control

oControl AssociationDiscussion: DMX512, RDM

oDMXchannel mode:3species

ocontrolRoad:9-CH/10-CH/7H-CH/8H-CH/17-CH

osoftware literlevel:PassoverDMXConnection Update Software

Electrical and Interface

oInput voltage rangecircumference: 100-240Vac; 50/60Hz

oworkrate:300W

opower plug:True-onePower transmissionin/Output

osignal inputin/Loseout:three-corefive-pin Kanon socket

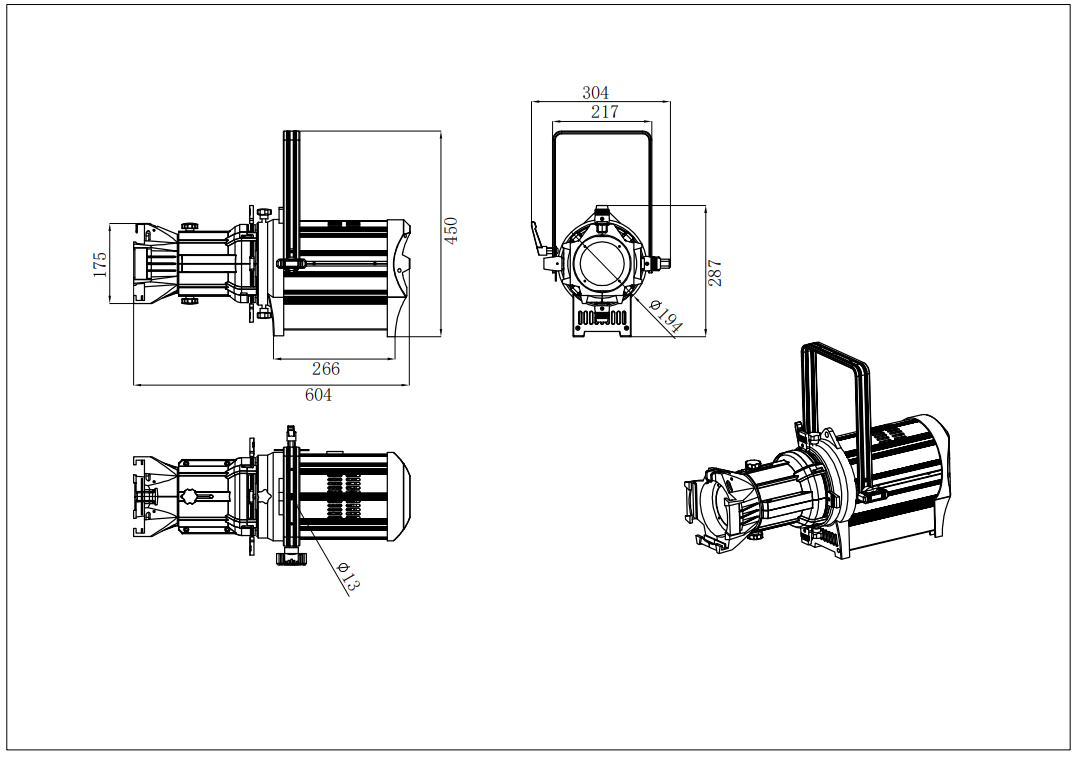

Luminairefeetinch/Material

owide:274mm (10.79")

odeep:668mm (26.3")

ohigh:410mm (16.14")

oNetheavy:9.5kg (11.02lbs)

omaterial: die casting aluminum

Packing Specification

ocarton rulerinch:

owide:303mm (11.93")

odeep:640 mm (25.2")

ohigh:360 mm (14.17")

oheavyquantity: 10.5kg (23.15lbs)(paperbox,11standardquasi)

work environment

omaximum ambient temperaturedegrees: 40°C

ominimum operating temperaturedegrees: 0°C

oprotection, etc.level: IP20

Installation

ocan be installed horizontally or vertically

oBrackethave1a keyhole

Factory Configuration

oElectronic Manual

opower cord

osignal line

optional accessories

olight hook

oSafety rope

ocolor chip holder

opattern clip
