MINI

light source

olightsource: LEDCOB

olamp color temperature/color:3200Kor5600KorRGBALoptional

oColor Refers: 3200K/5600K Ra95, RGBAL Rathe mosthigh95

olight sourcelife: 20,000hours

optical system

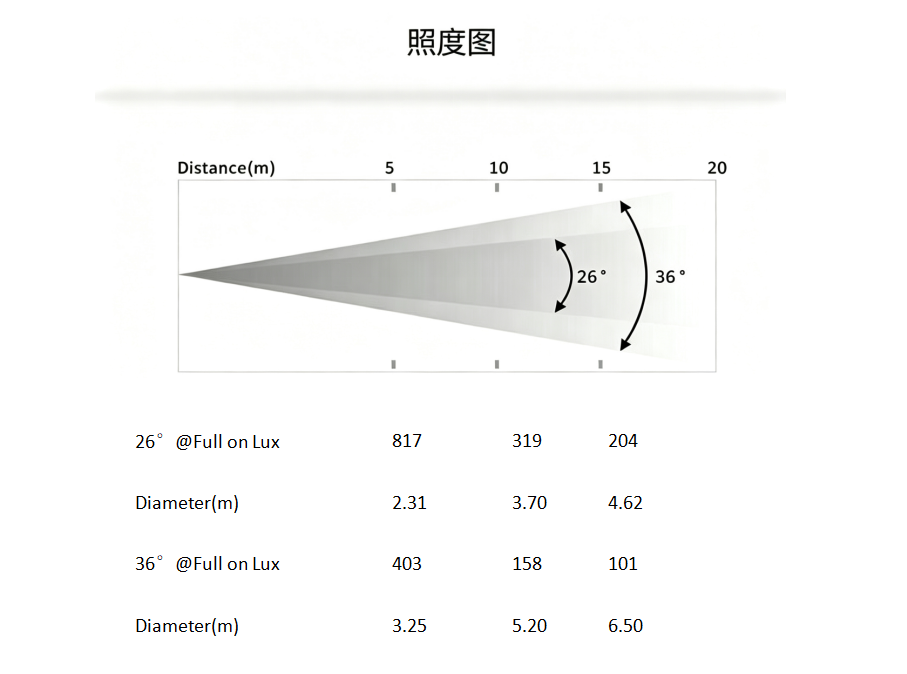

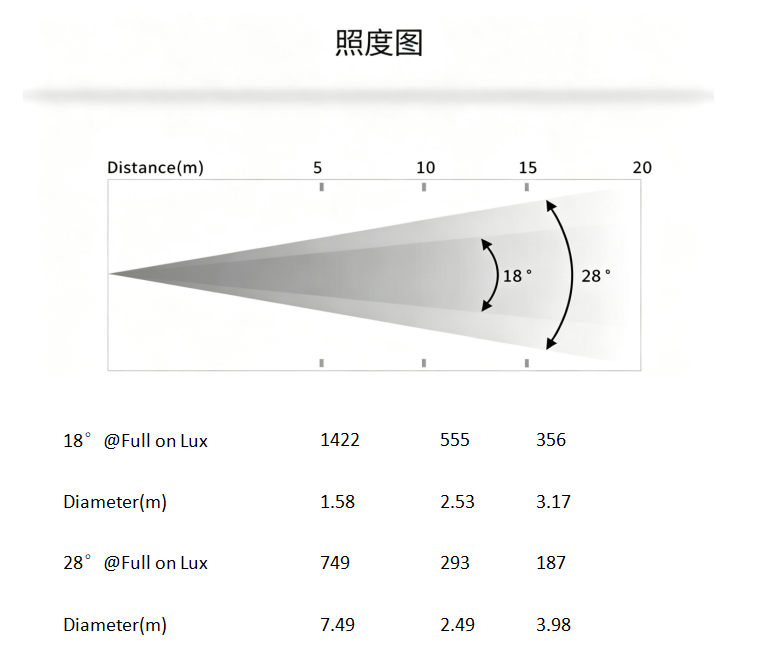

oimaging lamp beam angle: 18°-28°/26°-36°Manual Zoom

ospotlight beam angle: 16°-55°Manual Zoom

oFloodlight beam angle: 120°

Control and Procedure

o4keys

ocontrol surfaceplate: LCDDisplay

ooperating die: DMXdie,Manual control

oControl AssociationDiscussion: DMX512, RDM

ocontrolRoad:3200K/5600K1CH/2CH/3CH

oRGBAL 6CH/9CH

osoftware literlevel:PassoverDMXConnection Update Software

oHeat dissipation die:silent fan,3mode optional

Electrical and Interface

oInput voltage rangecircumference: 100-240Vac; 50/60Hz

oworkrate:150W

opower plug:Power connectorin/Output

osignal inputin/Loseout:Three-core or five-core Kanon head socket

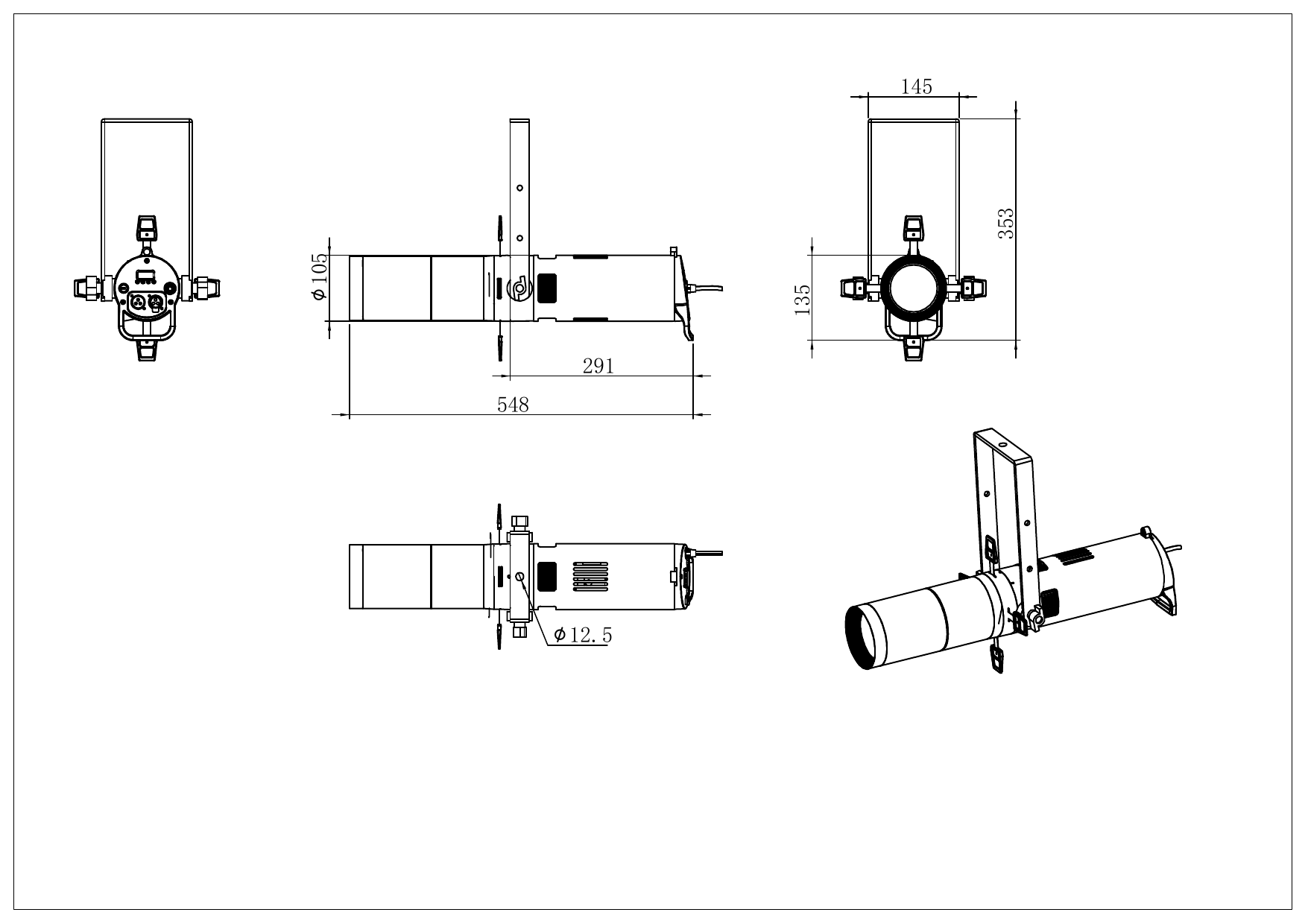

Luminairefeetinch/material (imaginglamp18-28degrees)

owide:195mm (7.68")

odeep:580mm (22.83")

ohigh:360mm (14.17")

oNetheavy:4.75kg (10.47lbs)

omaterial: aluminum typeMaterialfireproof plastic

work environment

omaximum ambient temperaturedegrees: 40°C

ominimum operating temperaturedegrees: 0°C

oprotection, etc.level: IP20

Installation

ocan be installed horizontally or vertically

oBrackethave1a keyhole

Factory Configuration

oInstructions

opower cord

osignal line

optional accessories

olight hook

oSafety rope

opattern clip
