monocular square shell lamp





light source

  • light source color:RGBW
  • light source power:Center Beam W=13W, RGB ring 0.2W*28 pcs
  • Light Source Expected Service Life: 20,000hours



optical system

  • beam angle:3°



Control and Procedure

  • 4touch keys
  • Control Panel:OLEDDisplay
  • Mode of operation: DMXmode,Manual control
  • Control Protocol: DMX512, RDM
  • DMXChannel Mode:2species
  • control channel:4-CH/15-CH
  • Software Upgrade:throughDMXConnection Update Software

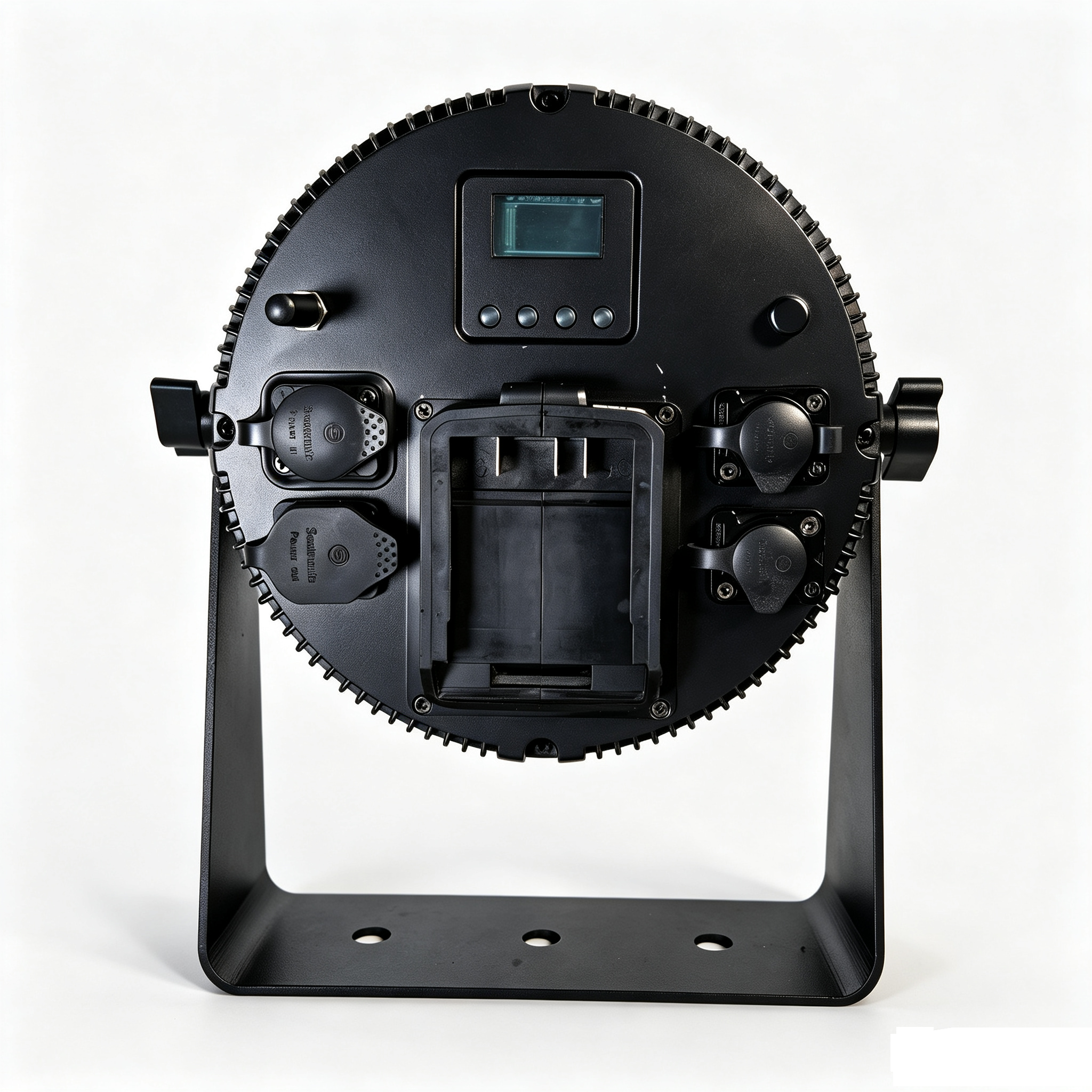

Electrical and Interface

  • Input Voltage Range: 100-240Vac; 50/60Hz
  • power socket:True-onePower Input/Output
  • signal input/Output:three-coreorfive-pin Kanon socket



LuminaireDimensions/Material

  • wide:137.9mm (5.43")
  • deep:162.8mm (6.41")
  • high:137.9mm (5.43")
  • net weight:2.5kg (5.51lbs)
  • material: full die casting aluminum





work environment

  • maximum ambient temperature: 40°C
  • minimum operating temperature: 0°C
  • protection level: IP20



Installation

  • Custom Bracket



Factory Configuration

  • Electronic Manual





optional accessories

  • Mounting Bracket
  • color chip holder
  • power cord
  • signal line
